Machine highlights:

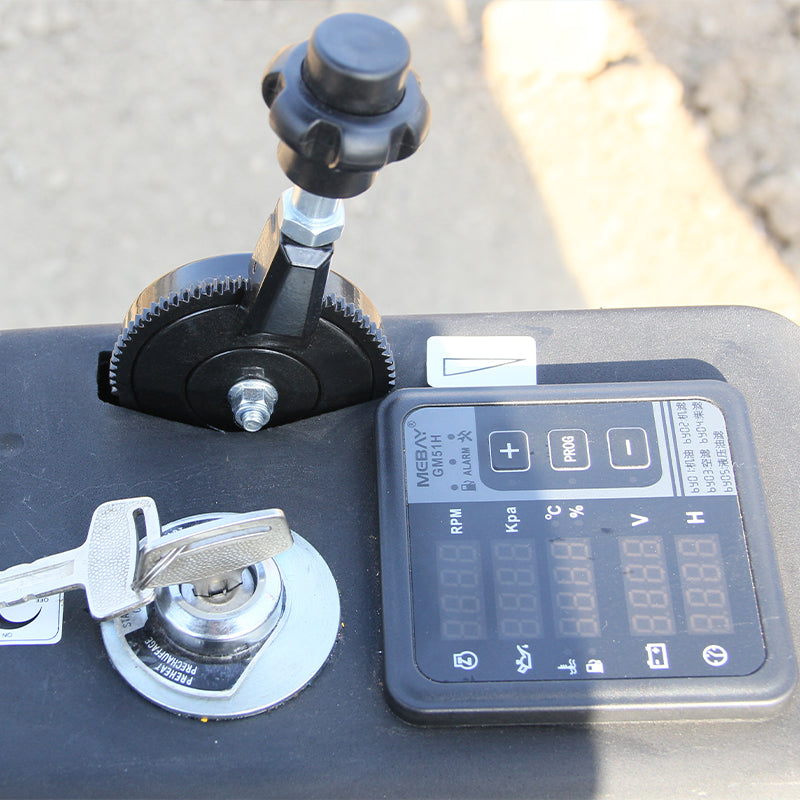

Removable power switch: provides effective anti-theft protection for the machine and ensures equipment safety.
Built-in oil pipe design: optimizes the arm structure, simplifies the welding process, effectively reduces the risk of oil pipe damage, avoids bumps, and extends the service life of the oil pipe.

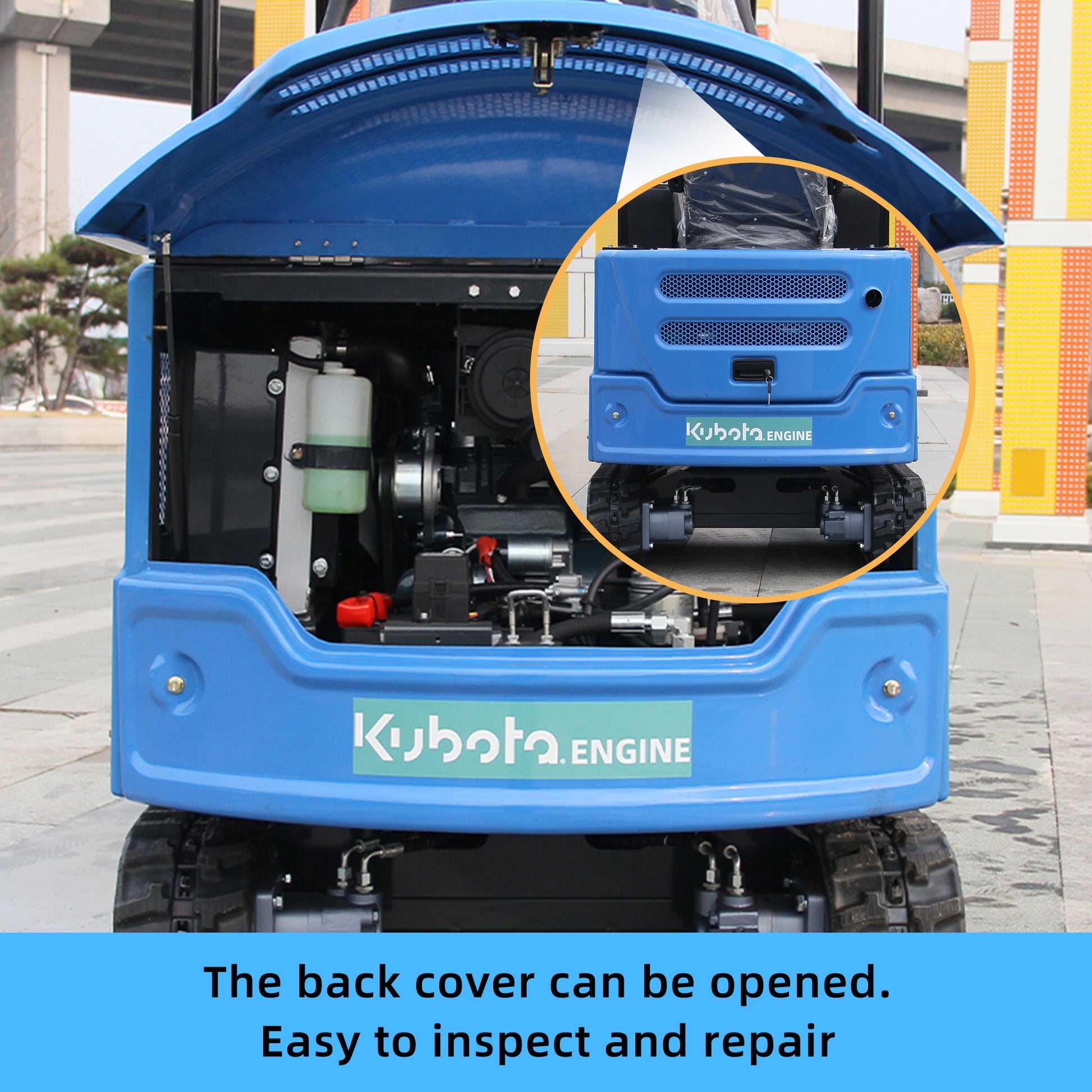

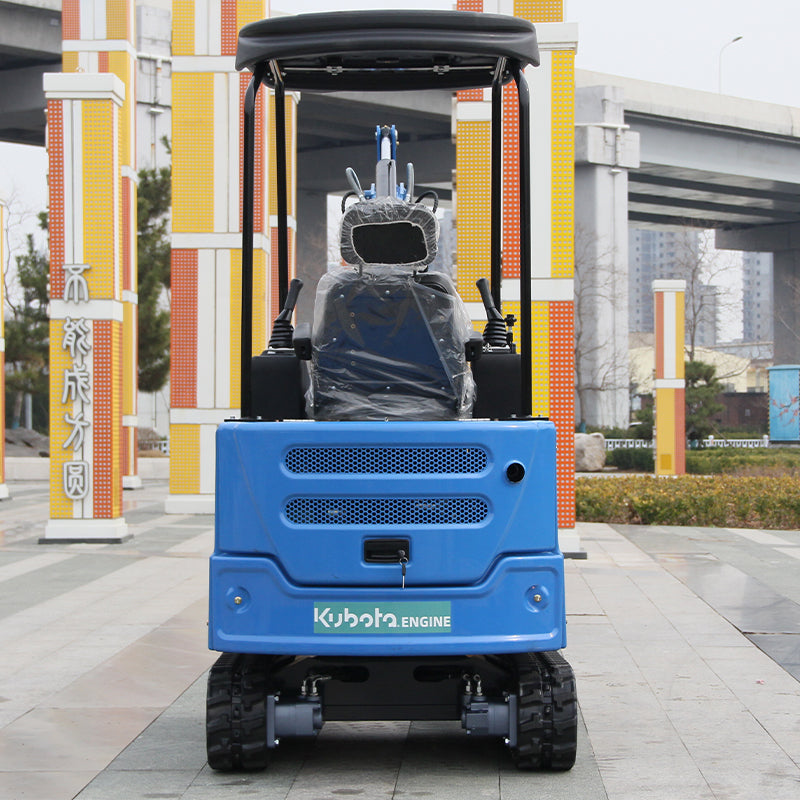

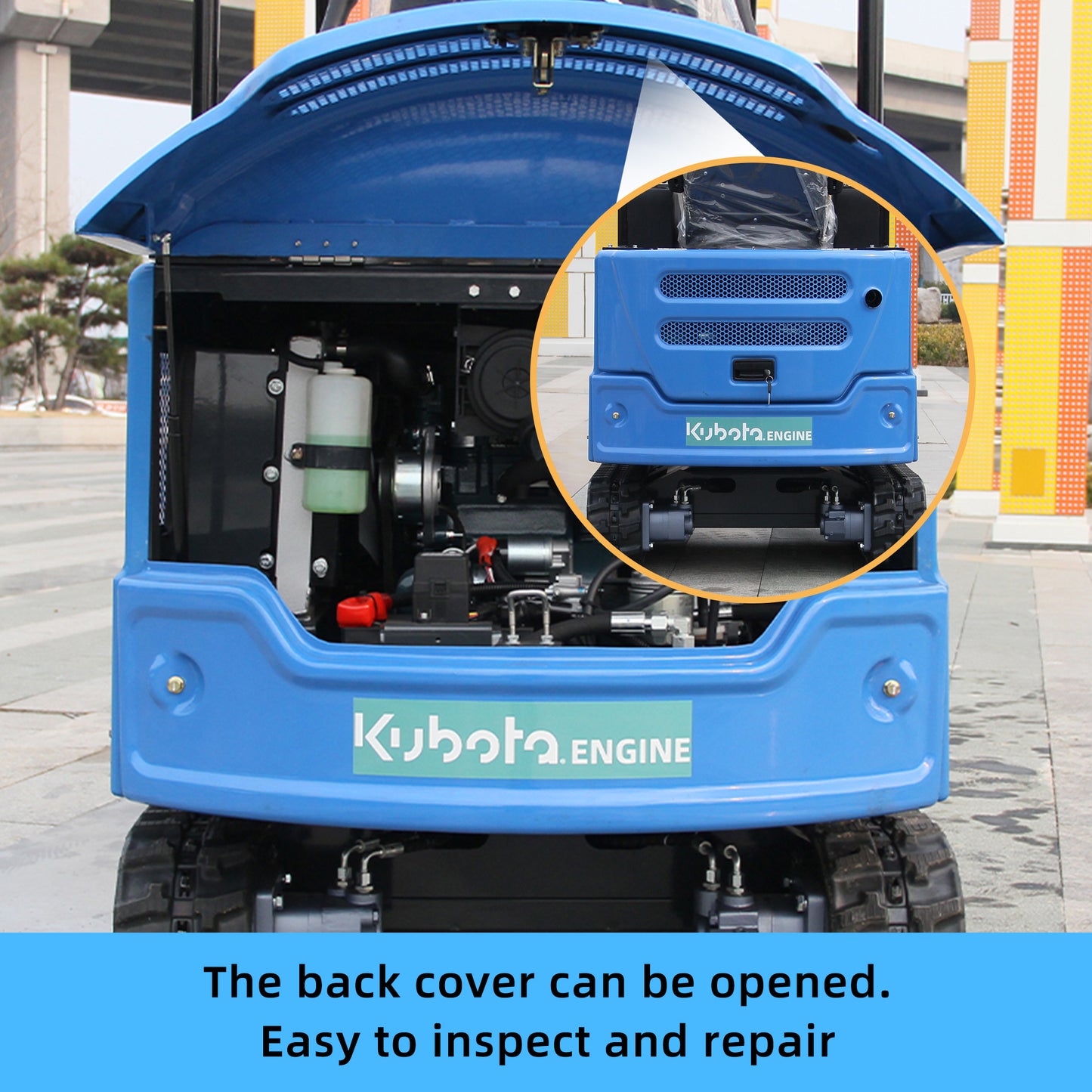

Openable engine rear cover: allows users to check the engine status at any time, simplifies maintenance work, and improves maintenance efficiency.
Plastic fuel tank: treated with plastic spraying process, rust-proof and corrosion-resistant.
Reinforced chassis: The slewing bearing mounting plate is integrated with the bridge frame to increase the strength of use.

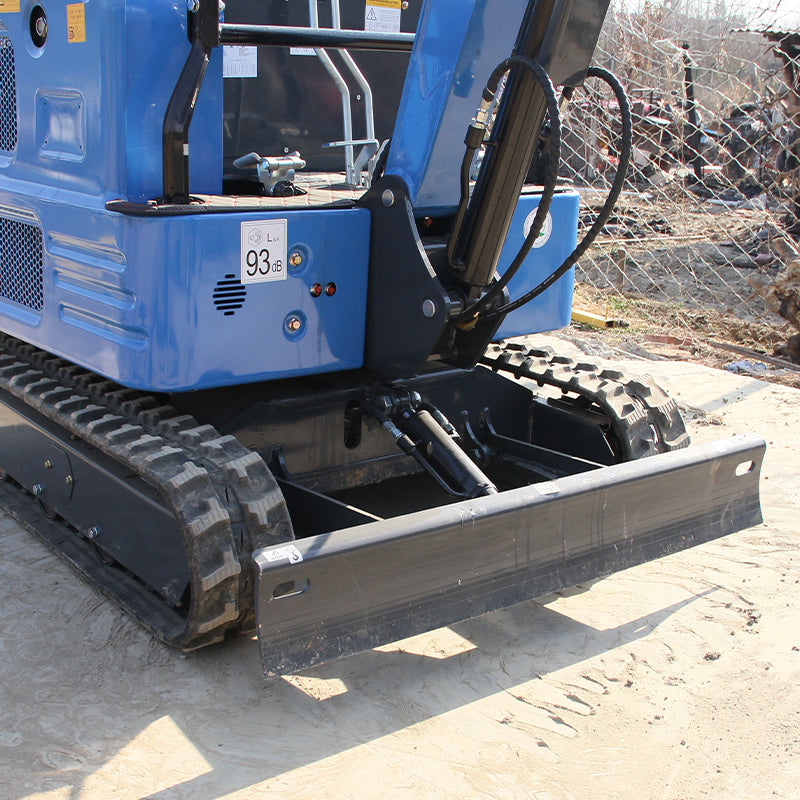

Bulldozer ear plate is thickened: pressure-bearing integrated molding, plate bending, eliminating welding tearing, and increasing machine stability.
Optimized pins: All links are equipped with grease fittings.
Product Description:
Product description:
-

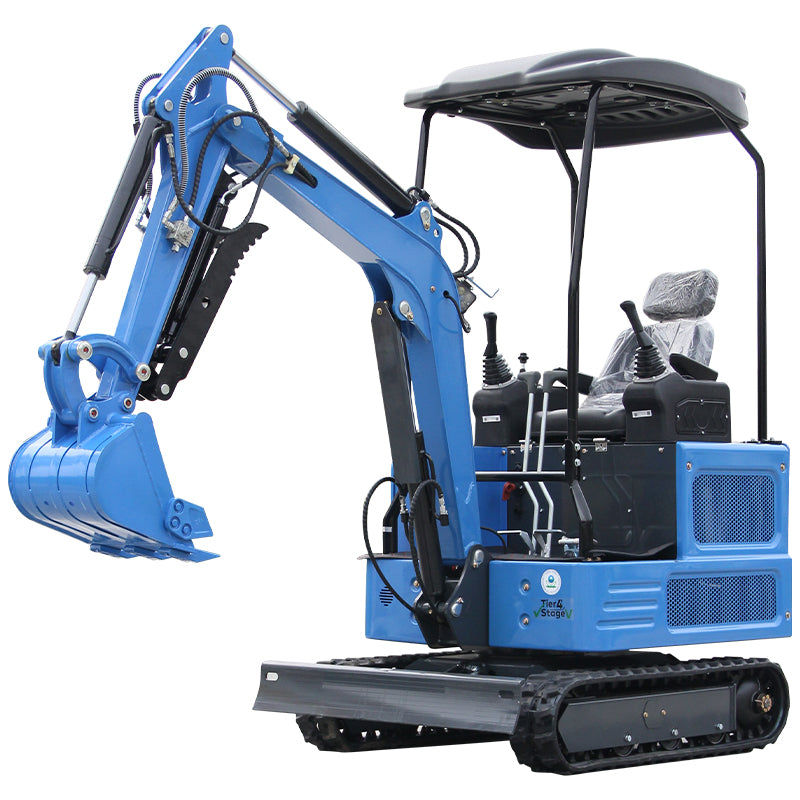

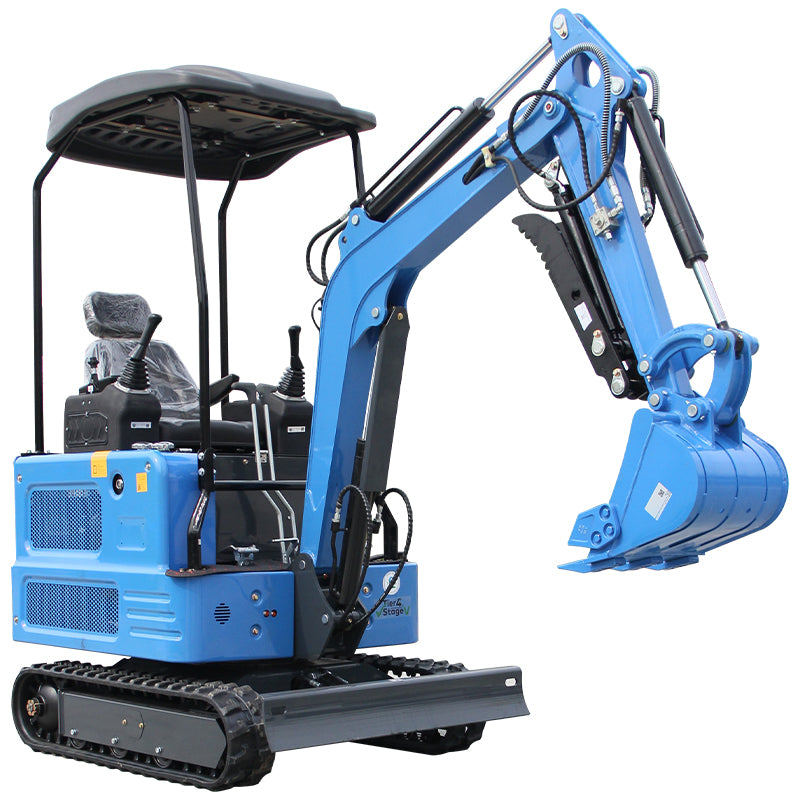

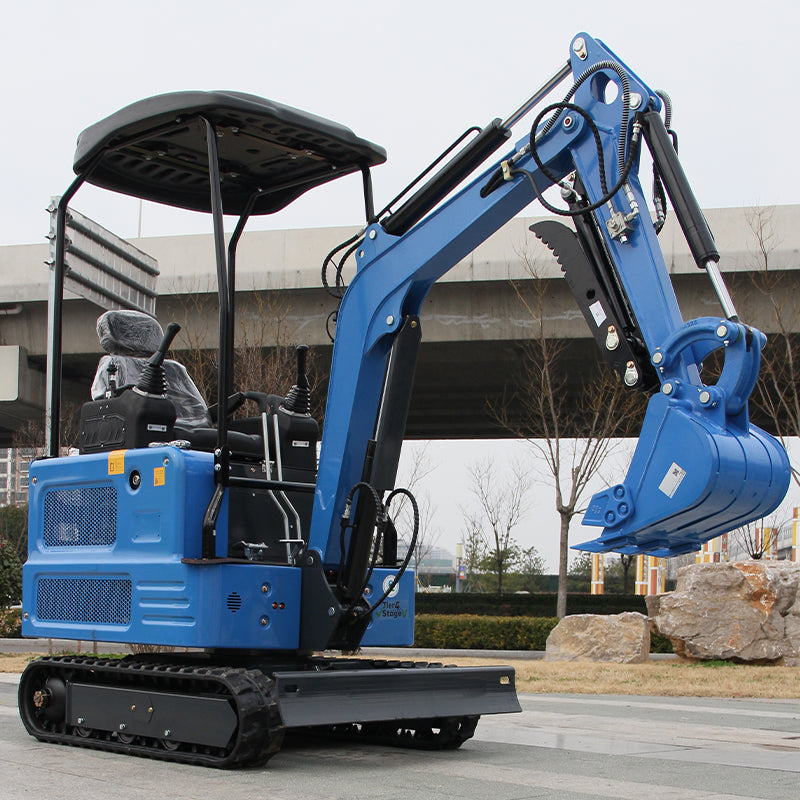

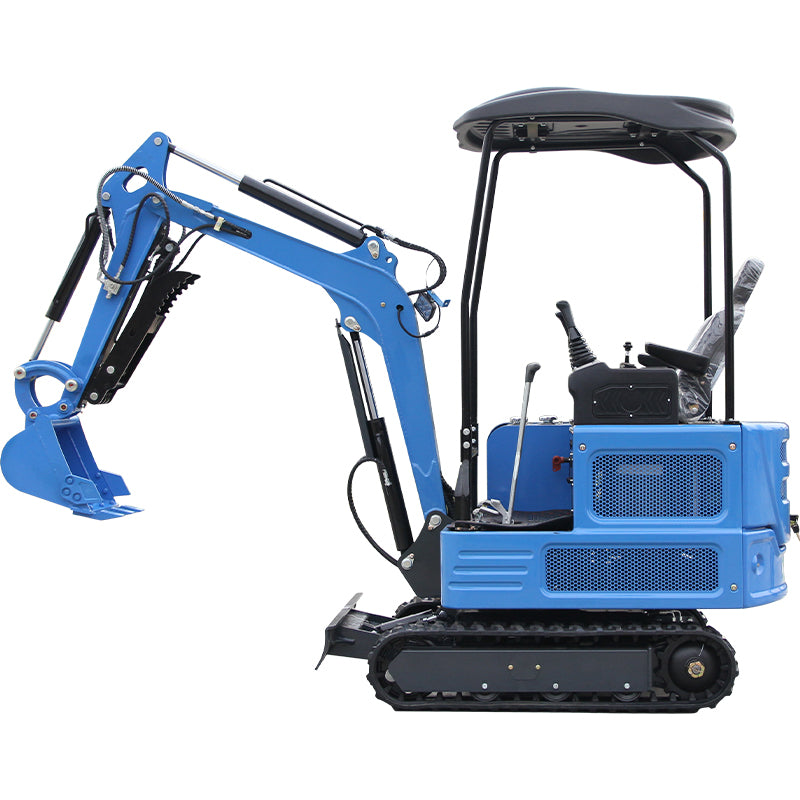

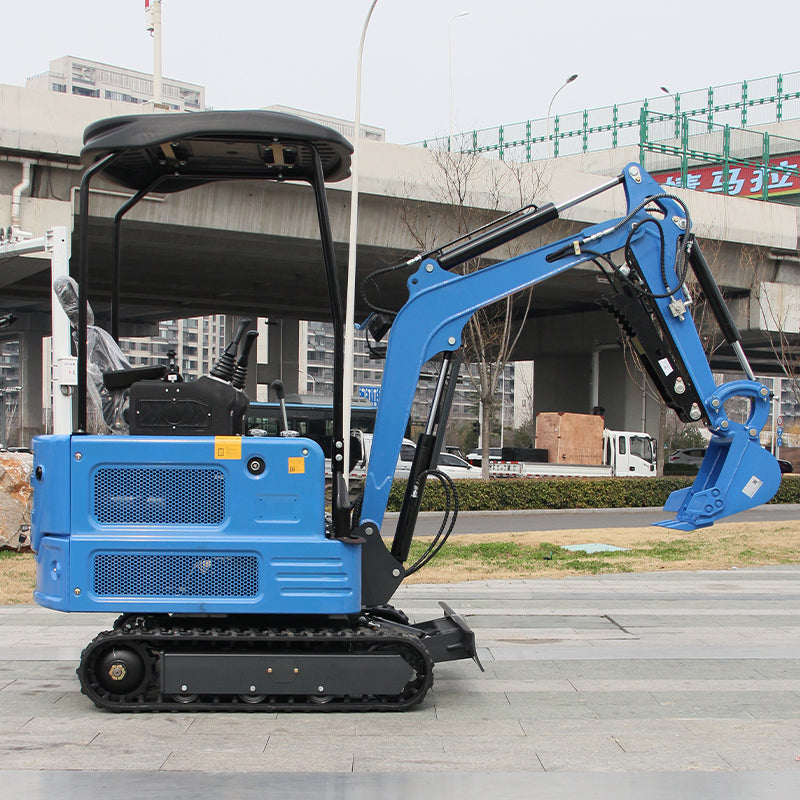

4,000 lbs Mini Excavator Digger Crawler Hydrauic Thumb KUBOTA Diesel EPA Engine1
Engine brand :Kubota Power
Engine model: Z482
Maximum horsepower (ps) :11.4
Maximum power (Kw): 8.2
Maximum speed (rpm): 3000
Displacement (L): 0.5
Number of cylinders: 2
Cooling method :Water cooling
Engine oil change amount (L): 2.5
Fuel form: Diesel
Fuel grade: 0/-10
Theoretical fuel consumption: (L/h) 0.8-1.2
Machine operating weight (kg) 1125
Bucket capacity (m³) 0.014
Travel speed Low/high speed (Km/h) 0-1.5
Gradability (%) 30%
Ground pressure (Kpa) 35
Maximum digging force (kN) 10.8
Maximum digging radius (mm) 3265
Maximum digging depth (mm) 2114
Maximum digging height (mm) 2851
Maximum unloading height (mm) 2018
Rated set pressure (Mpa) 16MPa
Maximum set pressure (Mpa) 18MPa
Transport length (mm) 2547
Transport width (mm) 1100
Transport height (mm) 2397
Counterweight ground clearance (mm) 362
Bucket width (mm) 400
Boom length (mm) 1675
Arm length (mm) 900
Bulldozer blade width (mm) 1100
Fuel tank (L) 12
Hydraulic oil tank (L) 12.5

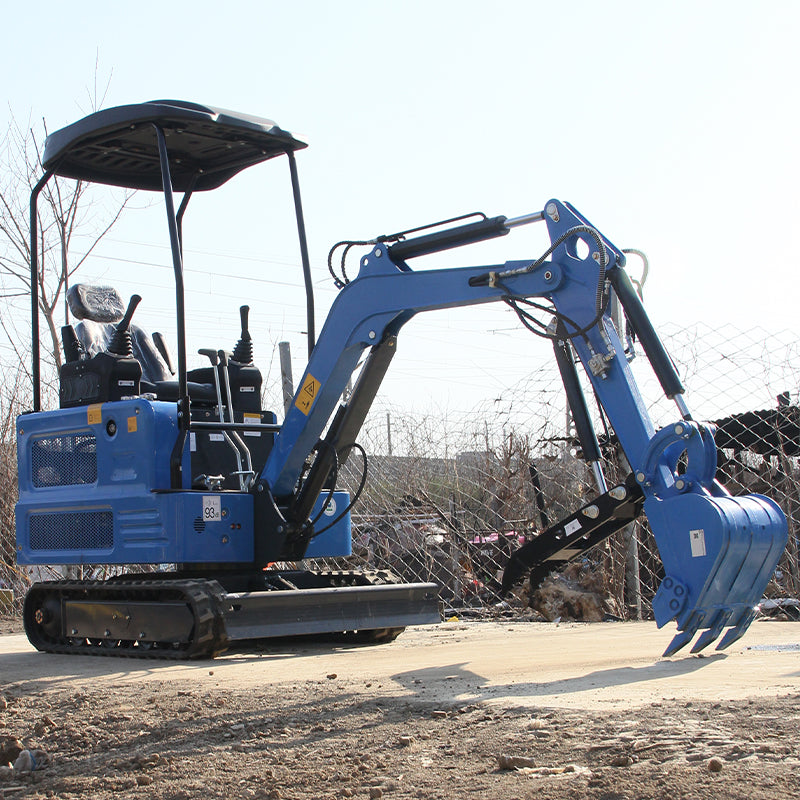

Widely used:Can be used in conjunction with quick change tools to replace various auxiliary tools such as scarifiers, rakes, rotary drills, wood grabbers, tilt buckets, hydraulic thumb clamps, mud buckets, etc, Due to its compact and user-friendly design, this trenching machine is very suitable for drilling, excavation, grabbing, pushing soil, cleaning ditches, small-scale excavation, rock fragmentation, landscape beautification or construction.
The micro crawler hydraulic excavator has the advantages of flexibility, practicality, high configuration, high performance, low fuel consumption, beautiful appearance and wide application. It is suitable for loosening soil in vegetable greenhouses, landscaping in municipal departments, digging soil in orchards and nurseries, crushing concrete roads, mixing sand and gravel, and construction in narrow spaces, reducing maintenance and operation costs and improving the degree of mechanization.

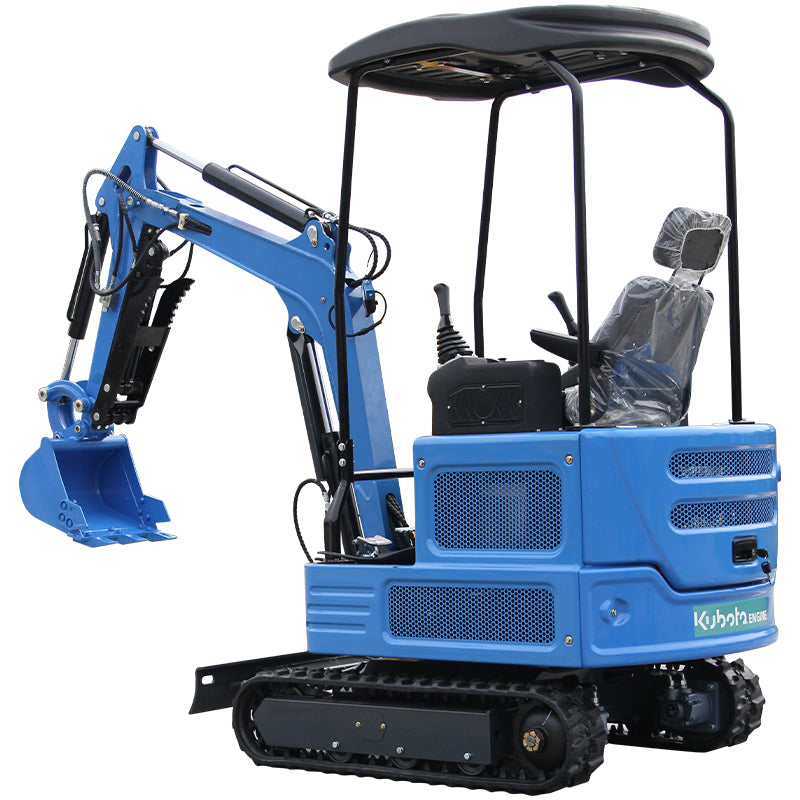

Compact but sturdy: Our trenching machine uses a small but high-performance KUBOTA engine, which is smooth in function and easy to maintain. This excavator is compact in size, but powerful in function, and can withstand intensive construction projects without sacrificing performance.
User friendly design: The micro excavator is very easy to operate even when used for the first time, and can easily operate all excavation, drilling, or bulldozer operations.
With this mini excavator, your construction project is sure to succeed!
